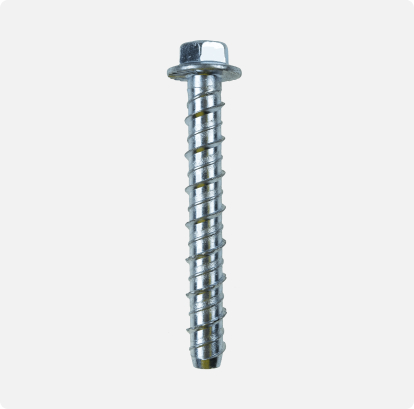

Concrete Bolt

• One anchor for installation in both non-cracked and cracked concrete
• Twice as fast as compared to segment anchors
• Possibility of adjusting the fixed element
• Possibility of complete disassembly of the anchor
• The anchor does not introduce local stress in the ground, distributing the load along the entire depth of the hole

TECHNICAL DETAILS

CODE	DRILL HOLE DIAMETER	THREAD DIAMETER	ANCHOR LENGTH	MAX. FIXTURE THICKNESS	MIN. EMBED. DEPTH	MIN. HOLE DEPTH	HEX HEAD DIA A/F	BOX PACK.
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
TAB06050F*	6	8	50	20	30	40	10	100
TAB06075F*	6	8	75	45	30	40	10	100
TAB06100F*	6	8	100	70	30	40	10	100
TAB06130F*	6	8	130	100	30	40	10	100
TAB06150F*	6	8	150	120	30	40	10	100
TAB08060F*	8	10	60	25	40	50	12	50
TAB08075F*	8	10	75	35	40	50	12	50
TAB08100F*	8	10	100	60	40	50	12	50
TAB10060F*	10	12	60	25	50	60	14	50
TAB10075F*	10	12	75	45	50	60	14	50
TAB10100F*	10	12	100	70	50	60	14	50
TAB10125F*	10	12	125	95	50	60	14	50
TAB10150F*	10	12	150	120	50	60	14	50
TAB12075F*	12	14	75	45	55	70	17	25
TAB12100F*	12	14	100	70	55	70	17	25
TAB12130F*	12	14	130	95	55	70	17	25
TAB12150F*	12	14	150	120	55	70	17	25
